Attached Pergola Kit with Zen Steel Brackets – Up to 12' x 12'

Create an attached pergola structure with this bracket kit designed for projects up to 12' x 12'. The system is designed for mounting to a house with two posts and uses traditional rafters positioned on top of the roof beams. Optional rafter overhangs can be incorporated into the design.

Zen Pergola Brackets are manufactured from laser-cut and laser-welded steel with pre-drilled holes for securing lumber and accessories. The brackets are available for common 4x4, 6x6, 2x4, and 2x6 lumber sizes and feature a weather-resistant coating. Lumber and anchoring hardware are not included, allowing you to select materials appropriate for your project.

Key Benefits

• Attached pergola design: Provides the bracket components needed for a pergola connected to a house with two posts.
• Flexible sizing: Supports a single pergola block in any size up to 12' x 12'.
• Multiple lumber configurations: Choose brackets designed for 4x4 and 2x4 lumber or 6x6 and 2x6 lumber.
• Traditional roof design: Supports conventional rafters positioned on top of the roof beams, with optional overhangs.
• Precision steel construction: Laser-cut and laser-welded brackets provide accurately formed structural components.
• Weather-resistant finish: Steel brackets feature a weather coating designed for outdoor conditions.
• Easy lumber attachment: Pre-drilled holes simplify securing wood and accessories to the brackets.
• 5-year bracket warranty: Includes a 5-year warranty covering the pergola brackets.

Product Details

• Pergola Type: Attached to house
• Post Configuration: 2 posts
• Maximum Pergola Size: Up to 12' x 12'
• Bracket Options: 4x4 and 2x4 or 6x6 and 2x6
• Roof Style: Traditional rafters atop roof beams
• Bracket Material: 12-gauge steel for 6x6 brackets; 14-gauge steel for other bracket sizes
• Manufacturing: Laser-cut and laser-welded
• Finish: Weather-resistant coating
• Warranty: 5 years on brackets

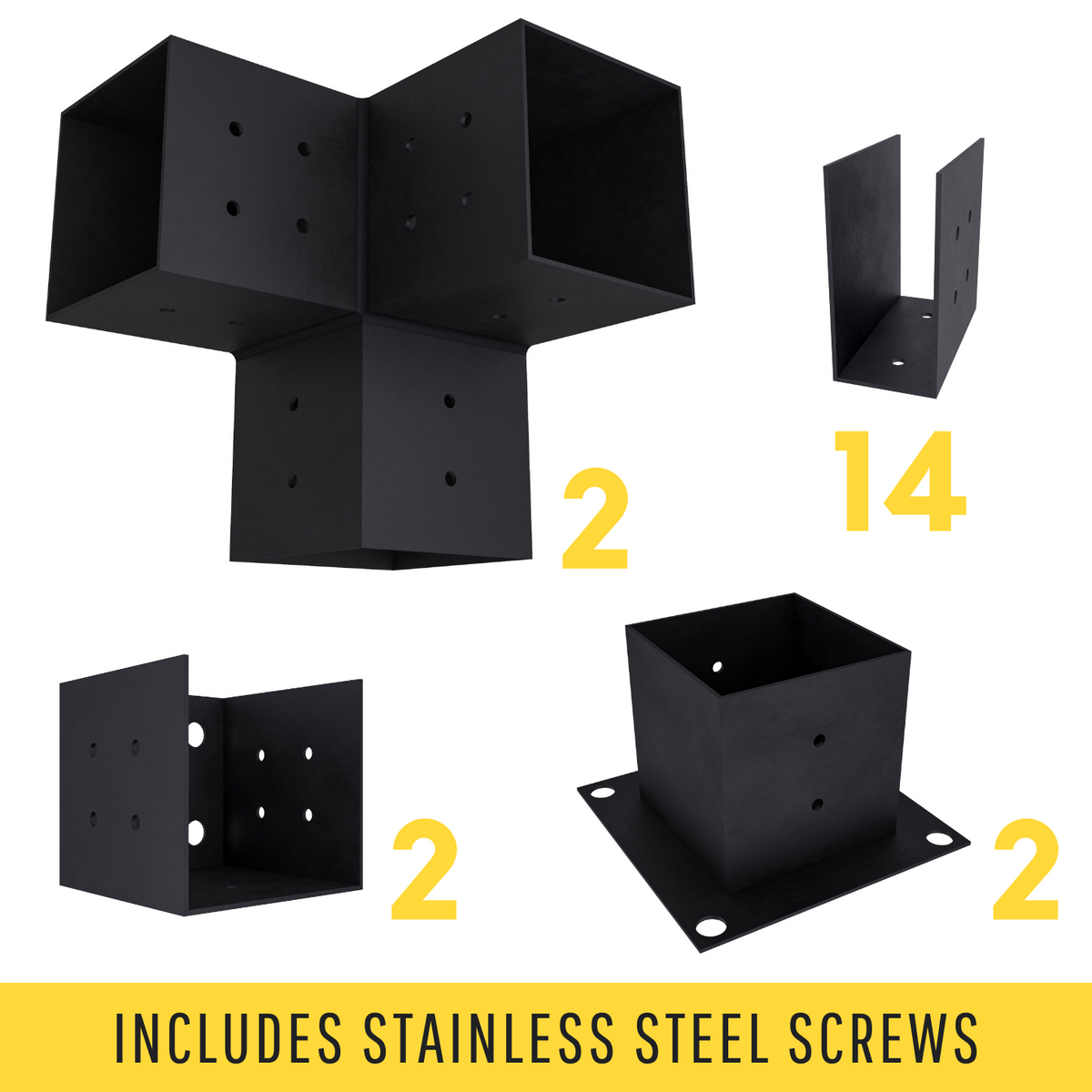

• Included Components: 2 post base brackets, 2 wall mount brackets, 2 corner 3-arm brackets, 14 roof rafter brackets, stainless steel #12 wood screws
• Not Included: Lumber and anchoring hardware for post base and wall mount brackets
• Origin: Shipped from Boise, Idaho
