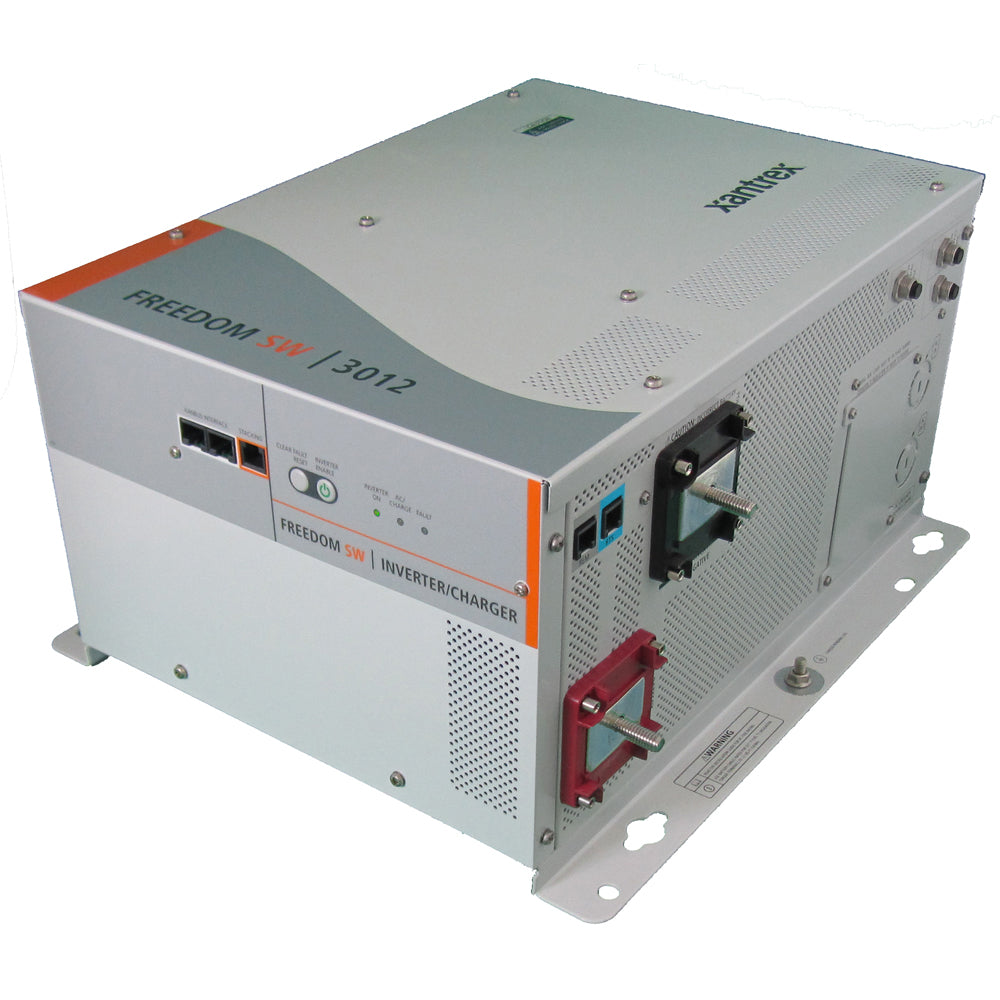

Xantrex Freedom SW3012 3000W 12V Inverter Charger

The Xantrex Freedom SW3012 is a 3,000W pure sine wave inverter/charger designed for mobile, marine, emergency, commercial, and recreational applications. It combines a high-output inverter with a 150A multi-stage battery charger, providing an integrated solution for converting 12V battery power to 120V AC and managing battery charging from an AC source.

Generator Support Mode allows the inverter/charger to supplement a generator when connected loads exceed the generator's available capacity. The built-in transfer switch provides rapid AC transfer, while parallel and series stacking capabilities allow compatible systems to increase inverter capacity or produce 120/240V split-phase output.

Key Benefits

• 3,000W pure sine wave output: Provides clean AC power for sensitive electronics and other compatible equipment.
• High-output battery charger: The 150A multi-stage charger provides efficient battery charging with power factor correction.
• Generator Support Mode: Can supplement a generator when connected AC loads exceed the generator's capacity.
• Fast AC transfer: Transfers loads to battery power in less than 10 milliseconds when incoming grid or generator power is lost.
• Expandable configuration: Parallel stacking can increase inverter output, while series stacking can provide 120/240V split-phase output with compatible equipment.
• Temperature-compensated charging: Adjusts charging based on temperature for different operating environments.
• Broad application range: Designed for recreational and commercial vehicles, marine vessels, emergency systems, construction equipment, and other mobile applications.
• Integrated protection: Battery voltage protection, over-temperature shutdown, overload protection, short-circuit protection, and resettable AC breakers help protect the system.

Product Details

• Brand: Xantrex
• Product: Freedom SW3012 Inverter/Charger
• Model: 815-3012
• System Voltage: 12V
• Continuous Inverter Output: 3,000W
• Inverter Input Voltage: 12V
• Inverter Output Voltage: 120V AC
• Frequency: 60 Hz
• Charger Output Voltage: 12V
• Charger Input Voltage: 120V AC
• Charger Output: 150A
• Inverter Waveform: Pure sine wave
• Charging Banks: 1
• AC Interface: Dual input / dual output
• Transfer Switch: Built-in
• Charging: Power-factor-corrected, multi-stage
• Operating Temperature: -4°F to 140°F (-20°C to 60°C)
• Circuit Boards: Conformal coated
• Stacking: Parallel and series capable
• Split-Phase Capability: 120/240V with series stacking and compatible split-phase AC source
• AC Breakers: Integrated, resettable
• Generator Compatibility: Xantrex Automatic Generator Start, Part #809-0915 (sold separately)
• Outlet Quantity: Optional
• Box Dimensions: 12" H x 18" W x 21" L
• Shipping Weight: 69.4 lbs.
• UPC: 008153012413
• Safety Warning: This product contains chemicals identified by the State of California under Proposition 65. See the applicable manufacturer warning for details.
